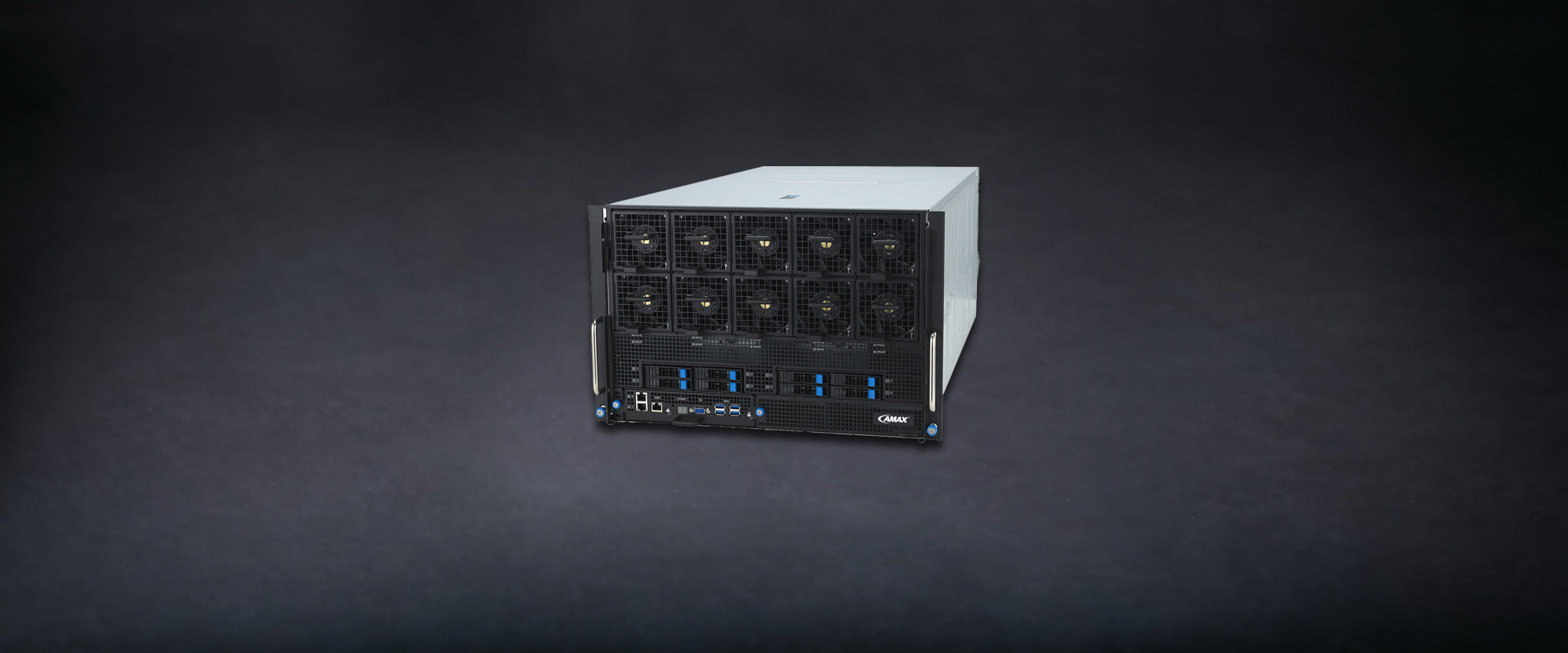

AceleMax® AXG-728AM2

7U Dual Socket AMD EPYC 9005 Series Processors 8x AMD Instinct™ MI355X Accelerators Server

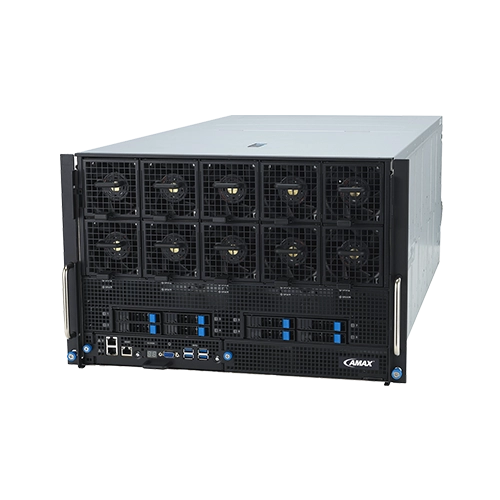

AceleMax® AXG-728AM2

AceleMax® AXG-728AM2

  • Powered by dual AMD next Gen processors, with DDR5 RDIMM up to 6000MHz 1DPC
  • CPU maximum TDP up to 400W
  • Powerful Performance
  • Enhanced IT-infrastructure management
Download Datasheet Request a Quote
Archived

Specifications

Category Details
Processor Support
  • 2 x AMD EPYC 9005 Processors (Up to TDP 400W)
Core Logic
  • (INTEGRATED I/O – NO CHIPSET)
GPU Support
  • AMD Instinct MI355X Platform with 8 MI355X OAM GPUs
CPU
  • 32x AMD EPYC™ 9005 processors
Memory
  • Total Slots: 24x DDR5 DIMM slots, up to 6000MHz (1DPC)
  • Capacity: 12-channel per CPU, 12 DIMM per CPU
  • Memory Type: Maximum up to 3TB
  • Memory Size: DDR5 6400/5600 RDIMM 128GB, 96GB, 64GB
Expansion Slots
  • Total PCI/PCI-X/PCI-E/PIKE Slots: Up to 11 PCIe slots
Slot Type:
  • 8× PCIe Gen5 x16 (LP, HL) – GPU group
89048 PCIe Switch (Direct)
  • [89104 PCIe Switch directly]
    • 8 x PCIe Gen5 x16 (LP, HL) – GPU group
  • [89048 PCIe Switch directly]
    • 1 x PCIe Gen5 x16 (FH, HL) – CPU 1 extension
    • 1 x PCIe Gen5 x8 (FH, HL) – CPU 1 extension
  • [CPU directly]
    • 1 x PCIe Gen5 x16 (FH, HL) – CPU 2
Disk Controller
  • NVMe: 2 x M.2 Gen5 x4 (22110, 2280, 2260)
Optional kits:
  • Broadcom MegaRAID 9540-8i
  • Broadcom MegaRAID 9560-16i
SATA / SAS Controller Optional Controllers
  • AMAX PIKE II 3008-8i / 3108-8i
  • Broadcom MegaRAID 9540-8i
  • Broadcom MegaRAID 9560-16i
Storage Bays
  • I = internal: 10 x 2.5” hot-swap bays
A or S will be hot-swappable:
  • 8 x NVMe + 2 x NVMe/SATA*/SAS*
  • *HBA/RAID card is required to support SAS hard drives
Networking
  • LAN: 1 x Management Port
Graphics
  • VGA: Aspeed AST2600 64MB
Front I/O Ports
  • 4× USB 3.2 Gen1 ports
  • 1× VGA port
  • 2× 10Gb RJ45 LAN ports (Intel X710-based)
  • 1 x Mgmt LAN
  • 1× Locate button
  • 1× Power button
Rear I/O
  • 1× Locate button
  • 1× Power button
Switch / LED Front
  • 1× Power Button/LED
  • 1× Location Button/LED
  • 1× Message LED
  • 1× Q-Code/Port 80 LED
Rear
  • 1× Location LED
  • 1× Power Button/LED
Management Solution
  • Software: AMAX Control Center (Classic)
  • Out of Band Remote Management: On-Board AB11-iKVM for KVM-over-IP
Power Supply
  • 5+1 Redundant 80 PLUS 3000W Titanium PSU
Environment
  • Operating temperature: 10°C ~ 35°C
  • Non-operation temperature: -40°C ~ 70°C
  • Non-operation humidity: 20% ~ 90% (Non-condensing)
Dimensions
  • 885mm x 447mm x 306.65mm
  • 34.8″ × 17.6″ × 12″
