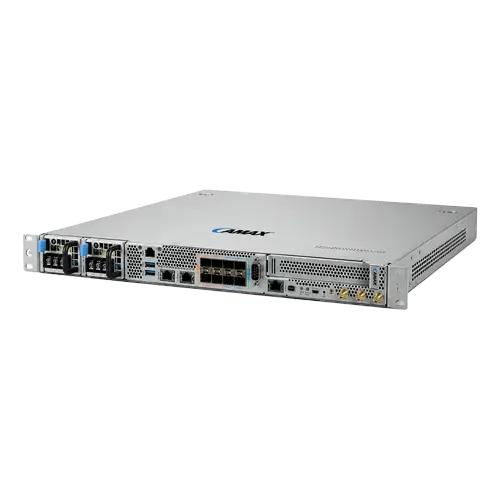

ServMax® X-110D

Specifications

Category	Details
Processor Support	Intel® Xeon® D-2786NTE (18-Core; extended temp; built-in NIC + QAT); for CU Server (for operation under -5 ~ 55°C) Intel® Xeon® D-2796TE (20-Core; extended temp; built-in NIC); for DU Server (for operation under -5 ~ 55°C)
Memory	Total Slots: 8 Memory Type: DDR4 up to 2933 MT/s DIMM Capacity (GB per DIMM): 64GB
Storage	2 x M.2 SSDs (PCIe3.0), 2280/22110
Networking	8 x 10GbE (SFP+), or 4 x 25GbE (SFP28) 1 x 1000BASE-TX RJ-45 port (supports NC-SI for BMC management) 1 x 1000BASE-TX RJ-45 port
Expansion Slots	1 x PCIe 4.0 x16 slot for FHHL add-in card
Operating System	RedHat 9.0 Windows Server 2022 (CU SKU only)
I/O Ports	Front: 2 x USB 3.0 port 1 x UART Micro USB, 1 x Mini-DP, 1 x DB9 Connector, 1 x RJ-45 (RS-232 serial port)
Cooling	6 x hot-swappable fans
Power Supply	2 x -48VDC Redundant Power Supply (Hot-swappable), or 2 x 110–240VAC Redundant Power Supply (Hot-swappable)
