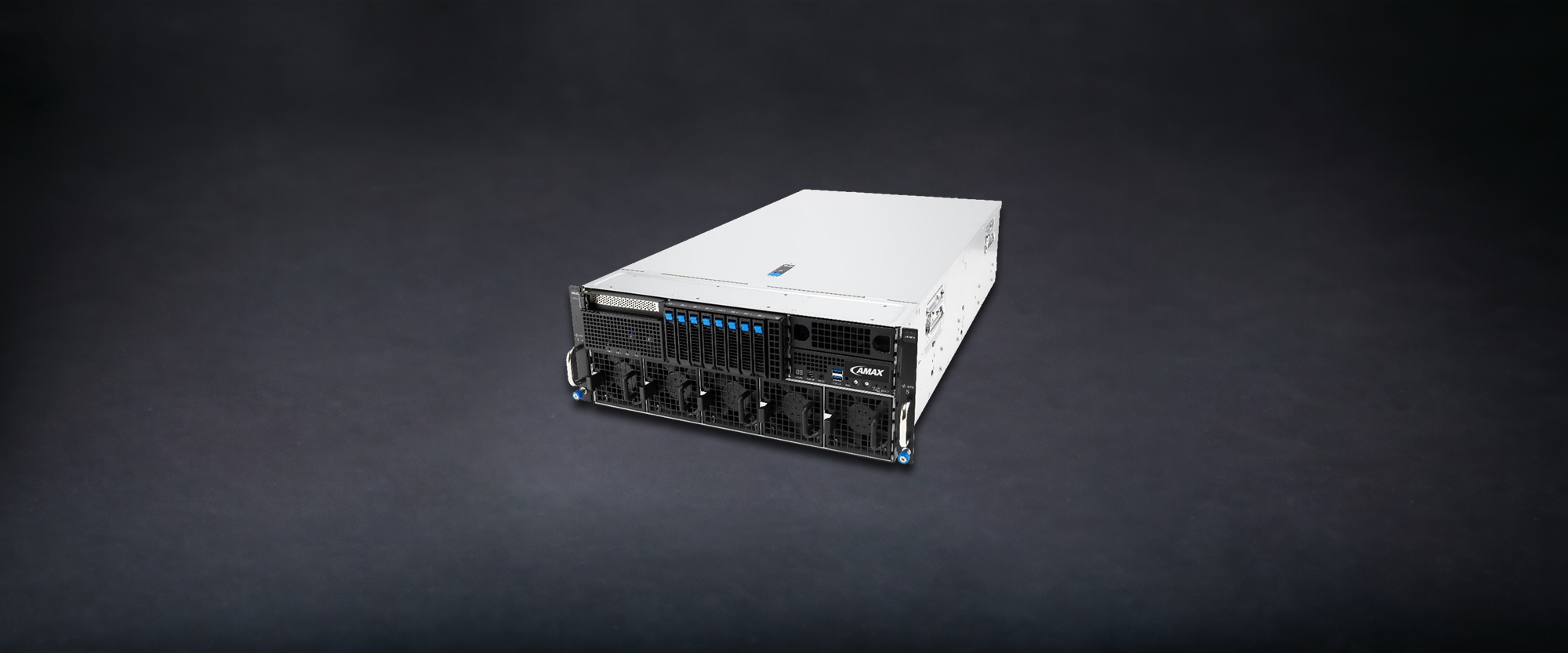

AceleMax® AXG-428A2

4U DP AMD EPYC™ 9005 GPU Server with up to 8 PCIe GPUs

AceleMax® AXG-428A2

AceleMax® AXG-428A2

  • AMD EPYC 9005 Series Processors
  • Modularized Design
  • Support for 8× 600W dual-slot GPUs
  • Optimized server configuration
  • Toolless design
Download Datasheet Request a Quote
Servers

Specifications

Category Details
Processor Support
  • 2× Socket SP5 (LGA 6096)
  • AMD EPYC™ 9005 Series processors
  • Up to 500W TDP, TDP support varies by configuration
Core Logic
  • System on Chip (SOC)
Memory
  • Total Slots: 24× DIMM slots (12 channels per CPU, 12 DIMMs per CPU)
  • Capacity: Up to 3TB per CPU socket
  • Memory Type: DDR5 6400 / 6000 / 5600 RDIMM / 3DS RDIMM
  • Memory Sizes: 128GB, 64GB, 32GB RDIMM
Expansion Slots
  • Total Slots: 14
Slot Type
  • Rear: 8× PCIe x16 (Gen5 x16 link, FHFL) for dual-slot GPU cards
GPU card
  • 5 x PCIe x16 (Gen5 x16 link, FHHL) for NIC card or BlueField-3 card
BlueField-3 Card
  • Front: 8× PCIe x16 (Gen5 x16 link, FHFL) for dual-slot GPU cards
Storage Bays
  • 8 x 2.5” Front Hot-swap Storage Bays (Backplane supports up to 8 x NVMe)
  • 2 x M.2 socket (Gen 5 x4 link, up to 22110)
Networking LAN
  • 2× 10GbE LAN ports (RJ45, X710-AT2)
  • 1× Management Port (RJ45)
Graphic
  • VGA: Aspeed AST2600 64MB
Front I/O Ports
  • 1× Mini DisplayPort
  • 2× USB 5Gbps ports
Rear I/O Ports
  • 1× USB 5Gbps port
  • 2× RJ-45 LAN ports
  • 1× RJ-45 Management LAN port
Switch / LED Front Switch/LED:
  • 1 x Power switch/LED, 1 x Location switch/LED, 1 x Message LED
  • 1 x Clear CMOS switch, 1 x Reset switch, 2 x M.2 LEDs, 2 x LAN LEDs, 1 x Q-Code/Port 80 LED
Rear Switch/LED:
  • 1 x Power switch/LED, 1 x Location switch/LED, 1 x Message LED
OS Support
  • Windows Server
  • RedHat® Enterprise Linux, SuSE® Linux Enterprise Server, CentOS, Ubuntu, VMware
Management Solution
  • Software: AMAX Control Center (Classic)
  • Out of Band Remote Management: On-Board AB12-iKVM for KVM-over-IP
Power Supply
  • 3+1 Redundant 3200W 80 PLUS Titanium power
  • Rating: 220-240 Vac, 16A (x4) 50/60Hz
Environment
  • Operating temperature: 10°C ~ 35°C
  • Non-operating temperature: -40°C ~ 60°C
  • Non-operating humidity: 20% ~ 95% (non-condensing)
Dimensions
  • 800mm x 439.5mm x 175 mm (4U)
  • 31.5″x17.3″x 6.9″
