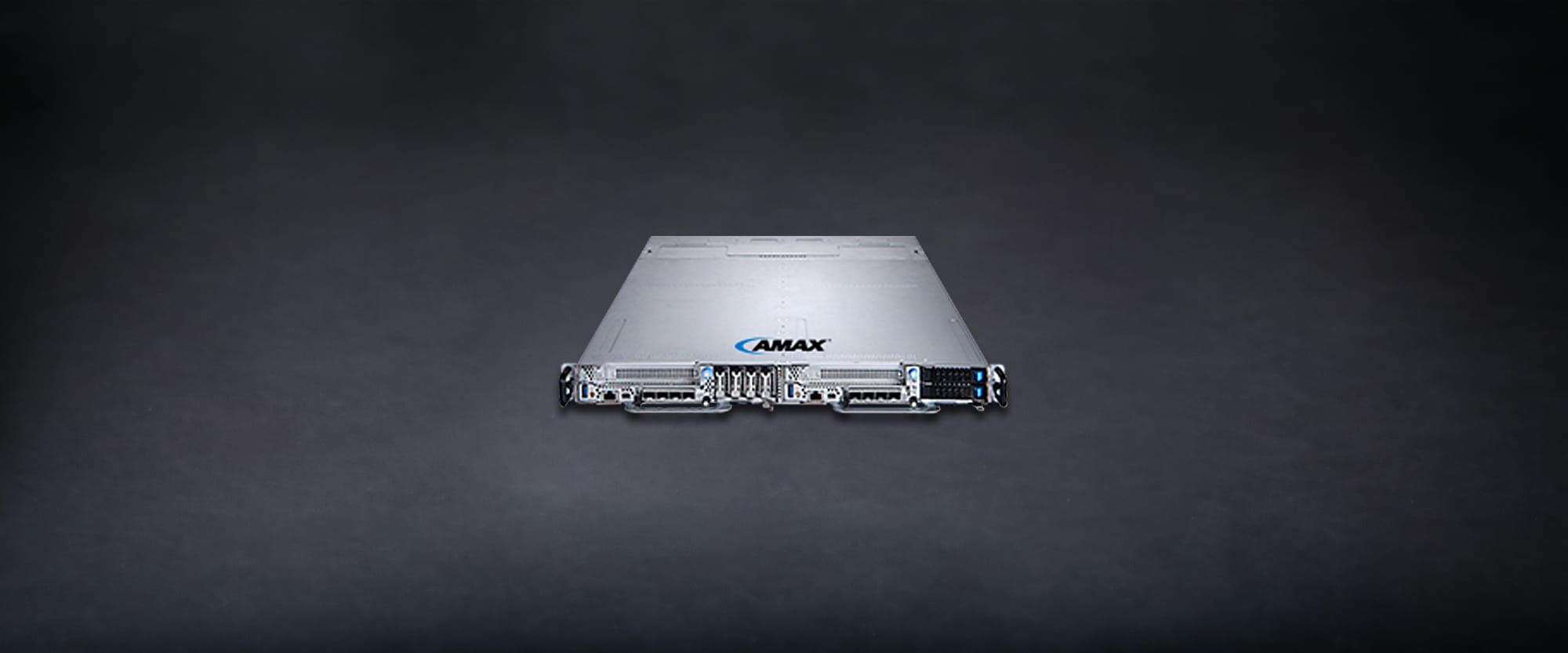

ServMax® A-1240T

The server with the highest CPU core density in the industry (utilizing air cooling)
For 1U rack space: support up to 4 CPUs / 336 CPU cores (using AMD 9634 CPU; 84 core)

All front-access I/O, and hot swappable drawer design for each node, easy to maintenance
Shared redundant power supplies provide better power efficiency

Specifications

Category	Details
Form Factor	1U 2-Node
Per Node Specifications
Processor	Number of Processors: 2 Processor Type: 2 × AMD EPYC™ 9004 series processor Max. TDP Support: 290W (84-Core)
Memory	Total Slots: 12 Memory Type: 1DPC DDR5 RDIMM 4800MT/s DIMM Capacity: 32GB, 64GB, 128GB
Expansion Slots	1 × PCIe 5.0 x16 1 × OCP 3.0 NIC
Storage Bays	SKU-#1: 2 × 2.5” U.2 SSD SKU-#2: 4 × E1.S EDSFF SSD
Onboard Storage	2 x M.2 SSD 2280/22110
Management	Aspeed® AST2600 Management Controller
Networking Interface	1 × OCP NIC 3.0
Front I/O Ports	1 × RJ45 10/100/1000BASE-TX with LEDs 1 × USB 3.0 Type-A 1 × Mini-DP 1 × Reset button 1 × Power button with LED
OS Support	RedHat RHEL 9.0 Ubuntu 22.04
Other Specifications per System/Chassis
Power Supply	1+1 1600W / 2000W CRPS
Fans	6 hot-swappable fans
Operating Environment	Operating: 5°C to 35°C Storage: -40°C to +60°C Transportation: -40°C to +60°C (short-term) Humidity: 10% to 90% (non-condensing)
Chassis Dimensions (W × H × D)	17.6” × 1.7” × 33.9” 448mm × 43.6mm × 860mm
