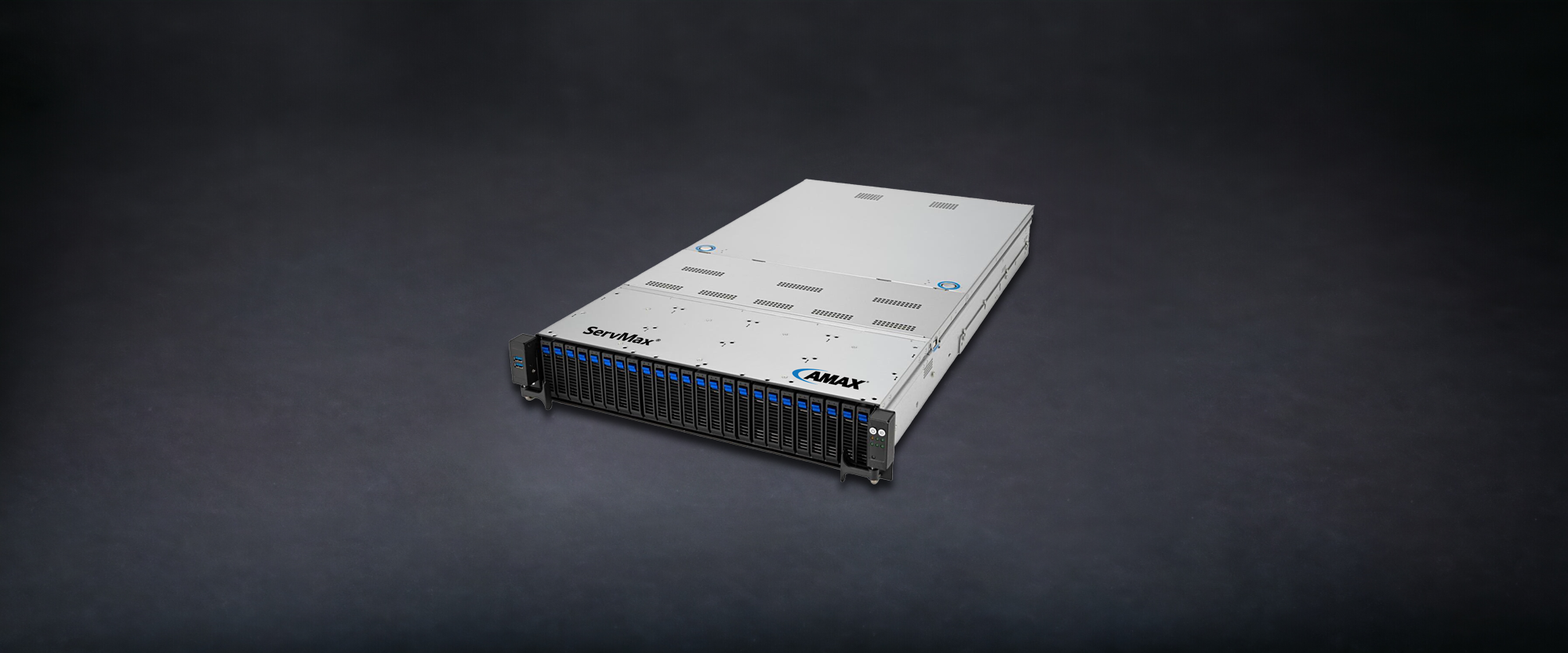

ServMax® A-2124T

2U Single Socket AMD EPYC 9005 Series Processor Server

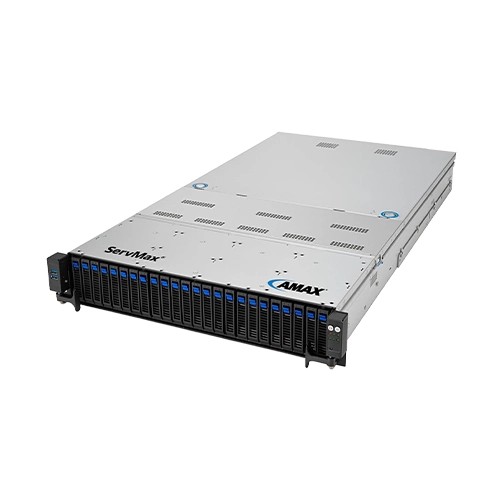

ServMax® A-2124T

ServMax® A-2220T

  • 1 × AMD EPYC 9005 Series Processor
  • 24 × DDR5 DIMM up to 5200 MHz
  • PCIe Gen5 slots
  • Max 2 × DW GPU cards supported
    *24 NVMe SKU can’t support GPU
  • Rack-optimized design
Download Datasheet Request a Quote
Servers

Specifications

Processor Support
  • 1 × Socket SP5 (LGA 6096)
  • Supports AMD EPYC™ 9005 series or 9004 series processors, up to 360W, with AMD 3D V-Cache technology
Core Logic
  • System on Chip (SoC)
Memory Total Slots:
  • 24 (12-channel, 2 DIMM per channel)
Capacity:
  • Up to 2,304GB maximum
Memory Type (EPYC 9005):
  • DDR5 5600 RDIMM
  • 2DPC: up to 5200 / 4400 / 4000 MT/s depending on configuration
Memory Type (EPYC 9004):
  • DDR5 4800 RDIMM
  • 2DPC: up to 4800 / 4000 / 3600 MT/s depending on configuration
Supported DIMM Sizes:
  • 16GB / 32GB / 64GB / 96GB RDIMM
Expansion Slots
  • Up to 5 × PCIe Gen5 slots + 1 × OCP 3.0
  • 2 × PCIe x16 (Gen5 x16 link, FHFL) or dual-slot GPU support
  • 4 × PCIe x16 (Gen5 x8 link, FHFL)
  • 1 × PCIe x16 (Gen5 x8 link, LP)
  • 1 × OCP 3.0 Mezzanine (Gen5 x16 link)
  • *Some configurations not available on 24 NVMe SKU
Disk Controller
  • SATA Controller: CPU Integrated
  • Optional SAS Controller:
    • Broadcom MegaRAID 9560-16I
    • AMAX PIKE II 3008 SAS HBA
Storage Bays
  • 24 × 2.5” hot-swap bays (U.2/U.3 NVMe or mixed SATA/SAS configurations)
  • 2 × rear 2.5” hot-swap SATA bays
  • 2 × M.2 slots (Gen4 x4 or SATA, up to 22110)
Networking
  • 1 × Dual Port Intel I350-AM2 Gigabit LAN
  • 1 × Dedicated Management Port
Graphics
  • ASPEED AST2600 VGA (64MB)
Front I/O Ports
  • 2 × USB 3.2 Gen1
Rear I/O Ports
  • 2 × USB 3.2 Gen1
  • 1 × VGA
  • 2 × RJ45 GbE LAN
Switch / LED Front:
  • Power switch (w/LED)
  • Reset switch
  • Location switch (w/LED)
  • HDD access LED
  • Message LED
  • LAN 1–2 LED
Rear:
  • Port80 LED (Q-Code)
  • Power switch (w/LED)
  • Location switch (w/LED)
  • Message LED
Management Solution
  • AMAX Control Center (Classic)
  • On-board AB11-iKVM (KVM over IP)
Power Supply
  • 1+1 redundant 2000W / 1600W 80 PLUS Titanium
  • 1+1 redundant 1200W 80 PLUS Platinum
Operating Environment
  • Operating: 10°C to 35°C
  • Non-operating: -40°C to 70°C
  • Humidity: 20% to 90% (non-condensing)
Dimensions
  • 840 × 449 × 88.1 mm (2U)
  • 33.07” × 17.68” × 3.47”
