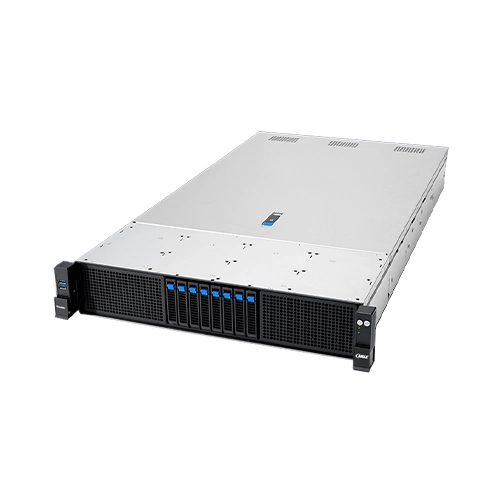

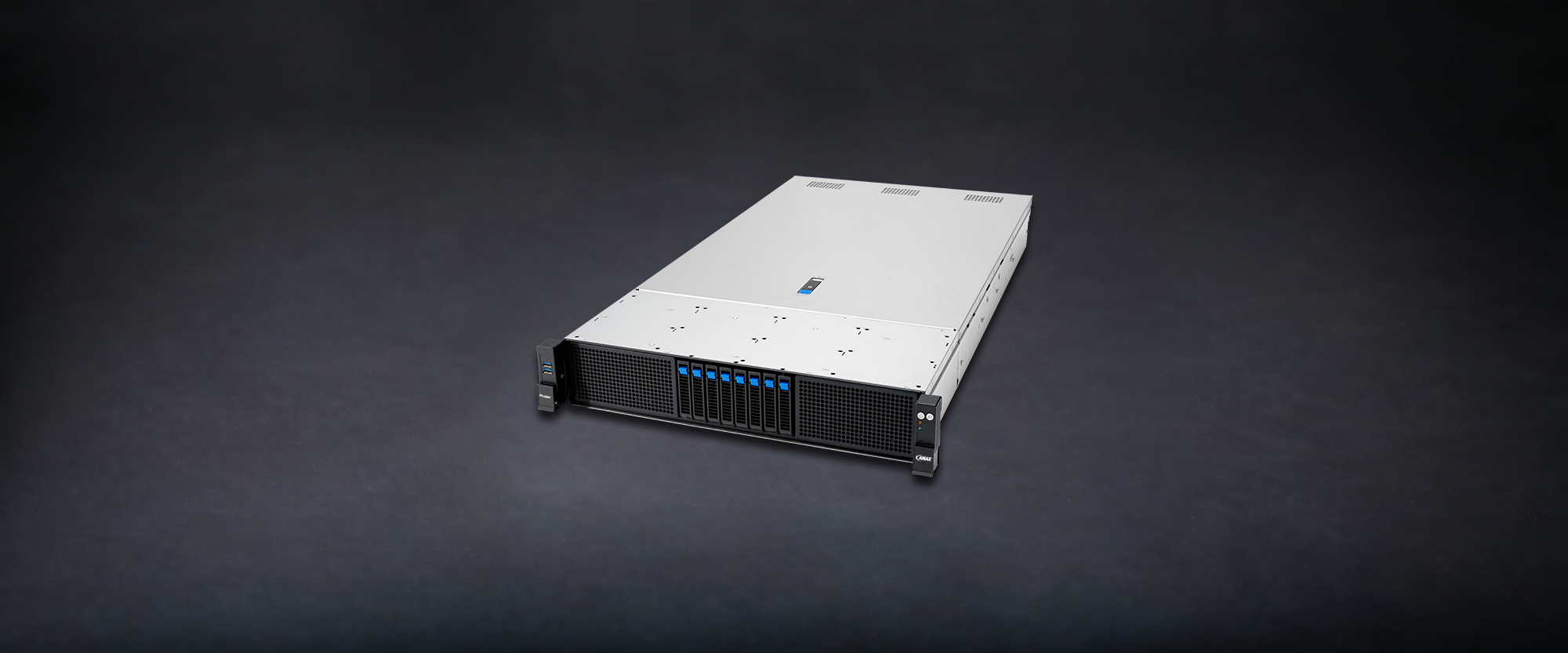

ServMax® A-2224T

2U Dual Socket AMD EPYC 9005 Series Processors Server

ServMax® A-2224T

ServMax® A-2224T

  • Powered by dual AMD 9005 processors, with DDR5
    RDIMM up to 6000MHz 1DPC
  • CPU maximum TDP up to 500W
  • GPU-optimized design allows three dual-slot GPU for AI workloads and high-performance computing (HPC)
  • Up to 10 expansion Gen5 slots
Download Datasheet Request a Quote
Servers

Specifications

Processor Support
  • 2 × AMD 9005 processors (up to TDP 500W)
  • *TDP support by configuration
Core Logic
  • Integrated I/O – No Chipset
Memory Total Slots:
  • 24 × DDR5 DIMM slots, up to 6000MHz (1DPC)
Capacity:
  • 12-channel per CPU (12 DIMM per CPU)
  • Maximum up to 3TB
Memory Type:
  • DDR5 RDIMM 6400 / 5600
Supported DIMM Sizes:
  • 128GB / 96GB / 64GB RDIMM
Expansion Slots
  • Up to 10 PCIe slots (PCI / PCI-X / PCIe / PIKE)
  • 6 × PCIe Gen5 x8 or 3 × PCIe Gen5 x16 (FHFL)
  • 2 × PCIe Gen5 x16 (FHHL)
  • 2 × OCP 3.0 slots
  • Support for up to 3 double-wide GPUs
Disk Controller
  • SATA Controller: 2 × DIMM.2 Gen3 x4 (22110 / 2280 / 2260)
  • Optional Controllers:
    • AMAX PIKE II 3008-8i / 3108-8i
    • Broadcom HBA 9500-16I
    • Broadcom MegaRAID 9540-8i
    • Broadcom MegaRAID 9560-16i
    • Broadcom MegaRAID 9670W-24i
    • Broadcom MegaRAID 9670W-16i
Storage Bays
  • 24 × 2.5” hot-swap drive bays
  • Supports up to 8 NVMe + 16 NVMe/SATA/SAS configurations
Networking
  • 1 × Management Port
Graphics
  • ASPEED AST2600 VGA (64MB)
Front I/O Ports
  • 2 × USB 3.2 Gen1
  • 1 × Type-C port
Rear I/O Ports
  • 2 × USB 3.2 Gen1
  • 1 × Mini-DP
  • 1 × RJ-45 Management LAN
Switch / LED Front:
  • Power switch / LED
  • Location switch / LED
  • Reset switch
  • Message LED
Rear:
  • Power switch
  • Location switch / LED
Management Solution
  • AMAX Control Center (Classic)
  • On-board ASM12-iKVM (KVM over IP)
Power Supply
  • 1+1 redundant 3200W / 2700W 80 PLUS Titanium PSU
Operating Environment
  • Operating: 10°C to 35°C
  • Non-operating: -40°C to 70°C
  • Humidity: 20% to 90% (non-condensing)
Dimensions
  • 2U, 449 × 88 × 830 mm
  • 17.68” × 3.5” × 32.7”
