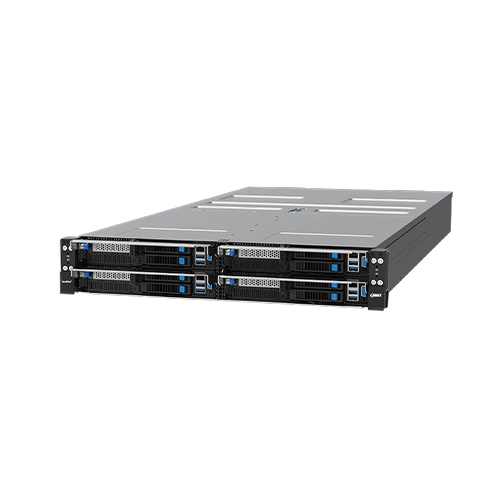

ServMax® A-24408T

Powered by single AMD next Gen processors, with DDR5 RDIMM up to 6000MHz 1DPC
CXL memory expandability achieving high memory capacity (12+8 DIMM per node) & speed (1DPC 6000 MTS/2DPC 4400 MTS)
Achieving greater flexibility and versatility with front access design
Effort-less ergonomic handle and toolless bracket design for easy maintenance

Specifications

Processor Support	Per Node: 1 × AMD EPYC 9005 Processors (up to TDP 400W)
Core Logic	Integrated I/O – No Chipset
Memory	12 × DDR5 up to 6000 MHz (12-channel per CPU, 12 DIMMs per CPU) CXL memory expandability supporting 4 or 8 DIMMs (2DPC, DDR5 up to 4400 MHz) DDR5 RDIMM support: 128GB / 96GB / 64GB (up to 6400 / 5600 MHz)
Expansion Slots	1 × PCIe Gen5 x16 link (HH, HL) 1 × OCP 3.0 slot
Storage Bays	8 × 2.5” hot-swap storage bays Supports SATA / SAS / NVMe drives SAS support requires additional RAID card 2 × M.2 PCIe Gen5 x4 (up to 2280)
Networking	1 × Management Port per node
Graphics	ASPEED AST2600 VGA (64MB)
Front I/O Ports	2 × USB 3.1 ports 1 × VGA port 1 × RJ-45 management port
Rear I/O Ports	1 × Debug port
Switch / LED	Power switch / LED (front) Location switch / LED BMC indication LED Message LED
Management Solution	AMAX Control Center (Classic) On-board AB12-iKVM for KVM over IP
Power Supply	2+spare redundant 3200W 80 PLUS Titanium 1+1 redundant 3600W 80 PLUS Titanium
Environment	Operating temperature: 10°C ~ 35°C Non-operating temperature: -40°C ~ 70°C Non-operating humidity: 20% ~ 90% (non-condensing)
Dimensions	448 (W) × 87.3 (H) × 900 (D) mm (2U) 17.64” × 3.44” × 35.4”
