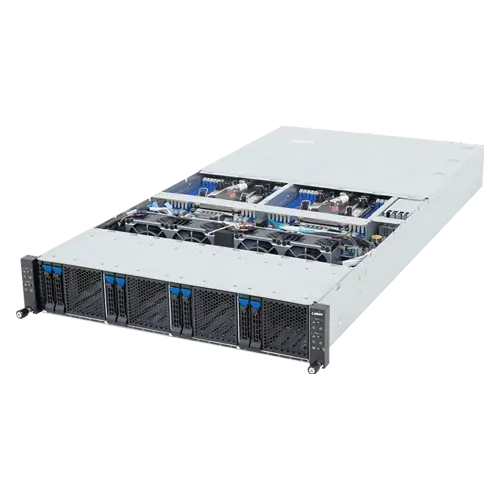

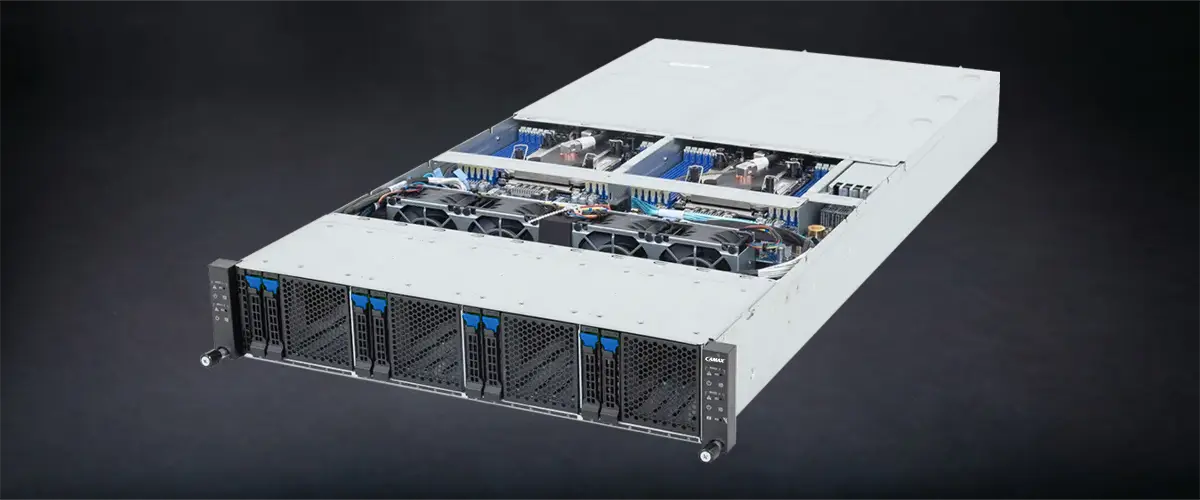

ServMax® X-2488BLC

2U 4-Node DP Intel® Xeon® 6+ DLC server

Datasheet Request a Quote

ServMax® X-2488BLC

ServMax® X-2488BLC

2U 4-Node DP Intel® Xeon® 6+ DLC server” storage bays

Features

  • Direct liquid cooling solution with leak detection
  • 2U 4-node rear access server system
  • Dual Intel® Xeon® 6900E+/6900-Series Processors per node
  • 12-Channel DDR5 RDIMM/MRDIMM per CPU with 24 x DIMMs per node
  • 8 x 1 Gb/s LAN ports via Intel® I350-AM2
  • 8 x 2.5” Gen5 NVMe/SATA/SAS-4 hot-swap bays

Applications

  • High-Performance Computing
  • High Converged Server
  • Hybrid/Private Cloud Servers/li>

Specifications

Category Details
Processor Support
  • Intel® Xeon® 6+ Processors: Intel® Xeon® 6900E+ Processor
  • Intel® Xeon® 6 Processors: Intel® Xeon® 6900-Series Processors
  • Dual processors per Node, TDP up to 500 W (liquid cool)
Socket
  • 8 x LGA 7529 (Socket BR)
Memory
  • 12-Channel DDR5 RDIMM/MRDIMM, 96 x DIMMs
  • Intel Xeon 6900E+: [RDIMM] Up to 8000 MT/s
  • Intel Xeon 6900 Series: [RDIMM] Up to 6400 MT/s
Storage
  • Front hot-swap: 8 x 2.5” Gen5 (NVMe/SATA/SAS-4)
Networking
  • 8 x 1 Gb/s LAN (4 x Intel® I350-AM2), Support NCSI
Expansion Slots
  • 4 x LP x16 (Gen5 x16)
Operating System
  • Windows®
  • Linux
I/O Ports
  • Front: 1 x CMC status LED, 1 x CMC reset button
  • Rear: 8 x USB 3.2 Gen1, 4 x Mini-DP (ASPEED® AST2600 x 4), 4 x MLAN
Cooling
  • 4 x 80x80x38mm System Fans
Power Supply
  • 2 x 3600 W 80 PLUS Titanium redundant power supplies
